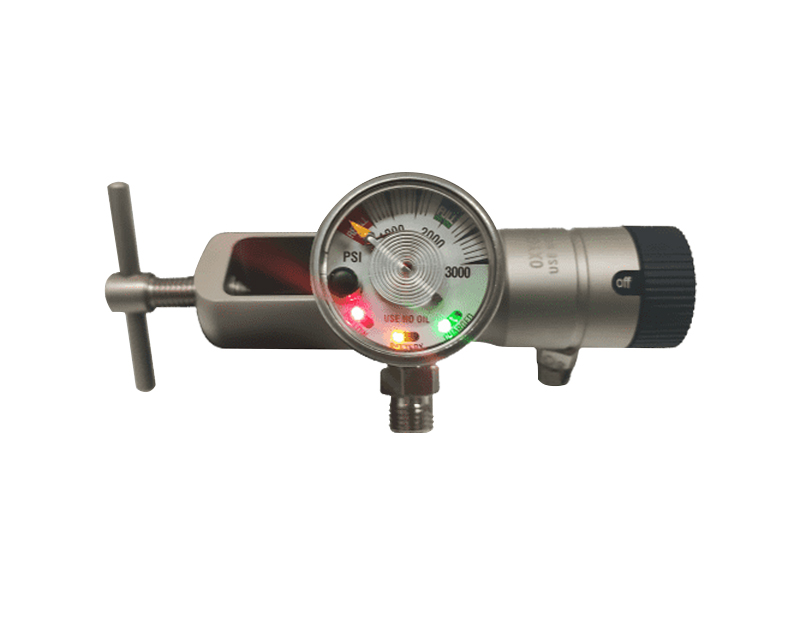

Portable Medical Oxygen Regulator with Audio & Visual Indicator

Dual-Alert System for Low-Pressure Warning

Silbermann’s Portable Medical Oxygen Regulator With Audio & Visual Indicator uses both visual and audio alerts for low oxygen pressure, delivering several key benefits to maintenance and medical staff:

For Maintenance Technicians: It enables quick and easy Identification of oxygen cylinders that require refilling, ensuring technicians can maintain reliable and safe service for the medical team in all clinical situations where portable oxygen cylinders are needed.

For Medical Staff: The early alert system helps prevent critical incidents by providing timely warnings of low oxygen pressure, ensuring an uninterrupted oxygen supply during patient care.

Request a quote

Downloads

Features & Benefits

  • LED Indicators for Oxygen pressure:
    • Green – Oxygen Pressure Normal
    • Red – Oxygen pressure low*
  • Audio alarm for low Oxygen pressure
  • Test Button for LEDs & audio alarm
  • LED Indicator (yellow) for battery charge**
  • Inlet Connection: Pin-indexed yoke or 3/4G
  • Inlet Pressure: Up to 200 Bar
  • Flow Selector:
    0.5, 1, 1.5, 2, 3, 4, 6, 8, 10, 15, 25 LPM
  • Gauge:
    • 0-315 Bar – Standard,  0-4000 PSI – Optional
    • Gauge protection rubber – optional
  • Material of Construction
    • Body: Nickel-plated Brass

Applicable Standards:

  • EN ISO 10524-1 (Pressure regulators with a flow metering device.
  • CGA E7 (American Standard)

Silbermann’s Quality Management System:

  • EN ISO 13485-2016

*Alarm pressure set to 500 PSI (34 bars)- changeable upon order ±100 PSI (± 6.8 bars)
** Long battery life lasting for several years
